Drum dumping system

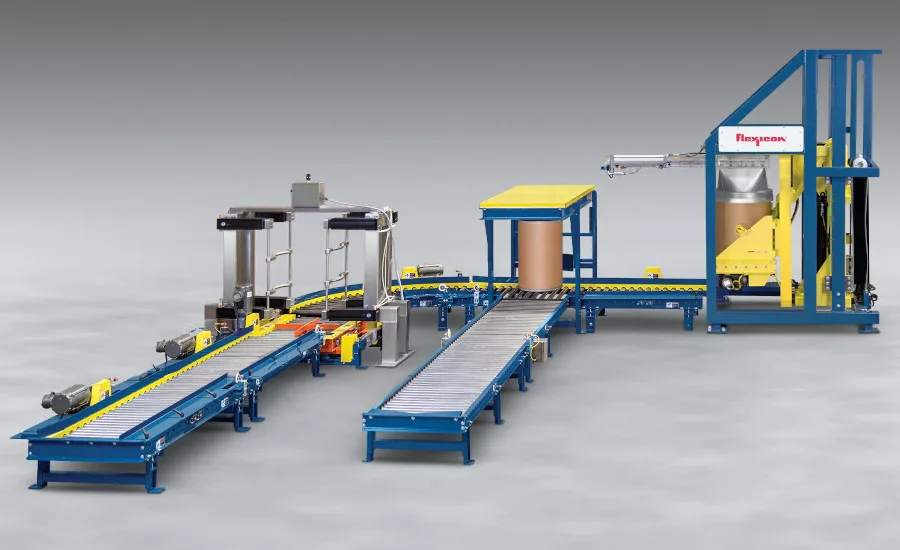

The new TIP-TITE Drum Dumping System from Flexicon, Bethlehem, Pa., automatically conditions fiberboard drums containing bulk solid material, dumps the material into downstream equipment and accumulates empty drums on a roller conveyor for removal.
The system is intended for low- to high-volume handling of drums containing material that has solidified or agglomerated during storage or shipment, while eliminating the dust, spillage and potential injury associated with manual drum handling.
A powered roller conveyor moves each full drum into a conditioning station where hydraulic rams press and release it on opposite sides. A turntable then rotates the drum in user-selected increments for subsequent press-and-release cycles sufficient to loosen the material.
The conveyor automatically sends the conditioned drum to a TIP-TITE dumping station that hydraulically raises and seats the drum rim against a discharge hood equipped with a slide gate. A second hydraulic cylinder lifts and tips the drum to a 45-, 60- or 90-degree angle with a motion-dampening feature. At full rotation, the slide gate opens to allow controlled discharge of material into downstream process equipment.
Once the empty drum is returned to its upright position, the rollers are reversed, sending the drum to a pneumatically-actuated ram that pushes it onto a separate roller conveyor where empty drums accumulate for removal.
Photoelectric sensors located along the roller conveyor relay the position of empty and full drums to the system controller, which powers the rollers to advance and stop drums as desired during each phase of the process.
The system is designed to accommodate fiberboard drums of all sizes weighing up to 750 pounds.
