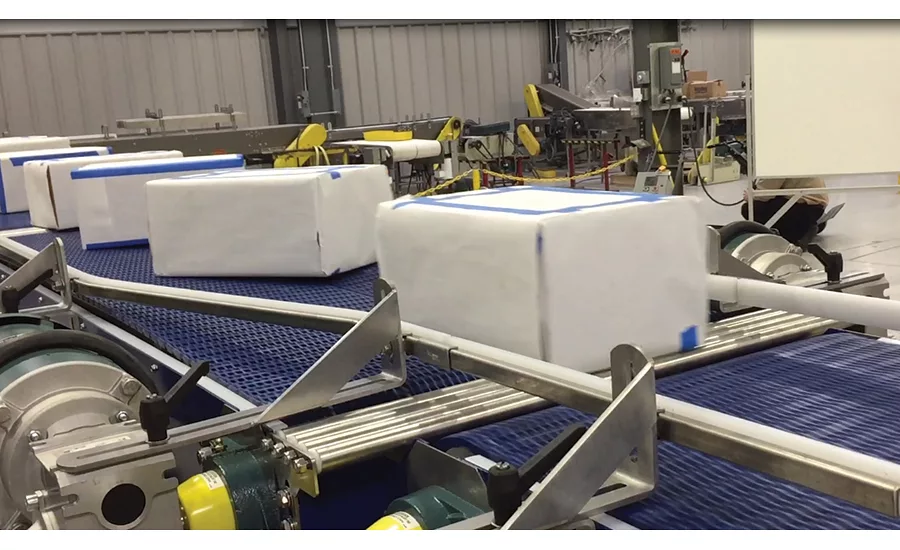

Product turner conveyor system
Multi-Conveyor, Winneconne, Wis., built a mild steel-constructed belt product turner conveyor system to transport shrink wrapped flats of jars.
This unique dual lane conveyor belt turns products by simply adjusting the speeds of the side-by-side opposing conveyor belts.
The first single belt runs faster to provide an adequate gap between products to ensure turning without products colliding. The dual belt design uses belting from Intralox, Harahan, La., and the belts run at two different speeds set by trial and error depending on product size and weight.
The steel roller transfers help stabilize the product as it enters the duel belt product turner to ensure accurate 90-degree rotation time after time.
