Heavy-duty hydraulic lift tables

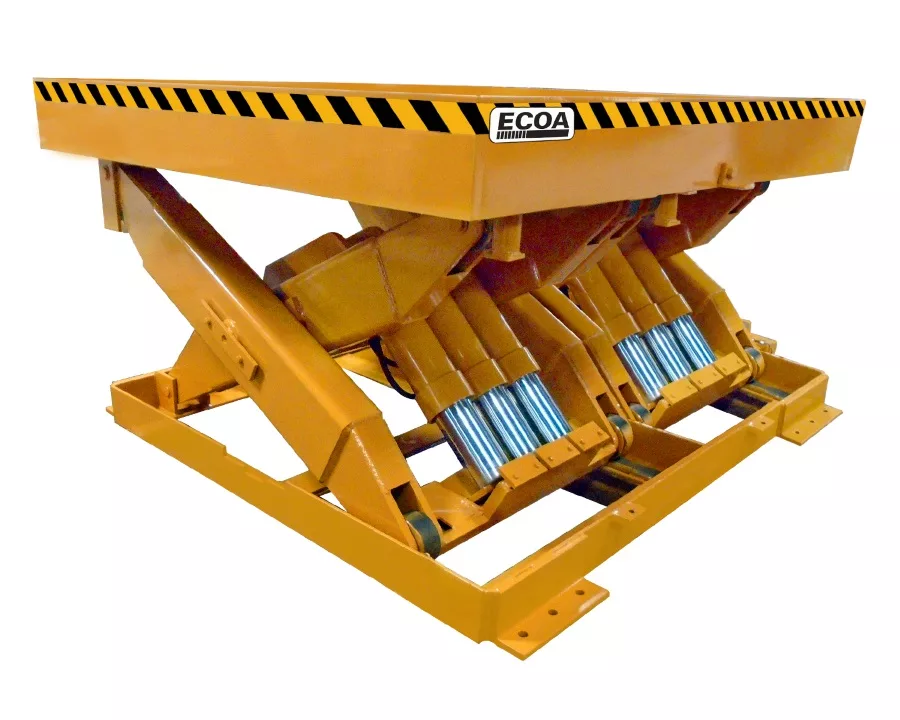

MLT Series heavy-duty hydraulic lift tables from Presto ECOA, Norton, Mass., are designed to handle extreme high capacity loads of up to 120,000 pounds. This series comes in over 45 different models, and are available with lifting heights from 52-92 inches.
MLT Series lifts are outfitted with rectangular structural tube scissor legs and torque tubes for maximum stability and minimal deflection, even under extreme load conditions. Depending on the capacity and platform requirements, they are outfitted in one of four scissor leg configurations, including one set of scissor legs; two sets of scissor legs in a side-by-side configuration; two sets of scissor legs in an end-to-end configuration; or four sets of scissor legs in a two-by-two configuration.
Standard MLT features include a hand pendant or foot switch control for lifting and lowering, an upper travel limit switch plus eight mechanical back-up stops, dual safety restraint maintenance bars, cylinder rod end protectors, a flow limiter valve at cylinder bases and double wire braid pressure hoses.
MLT Lifts can be customized with a wide variety of options, including custom platforms, tilt tops, powered turntables, conveyor tops, pneumatic ball transfer tops, special fixtures, v-cradles, powered traverse, bellows skirting, larger motors, corrosion-resistant finishes, weatherproof controls and more.
Presto ECOA Lifts
