Side mount cooling fans

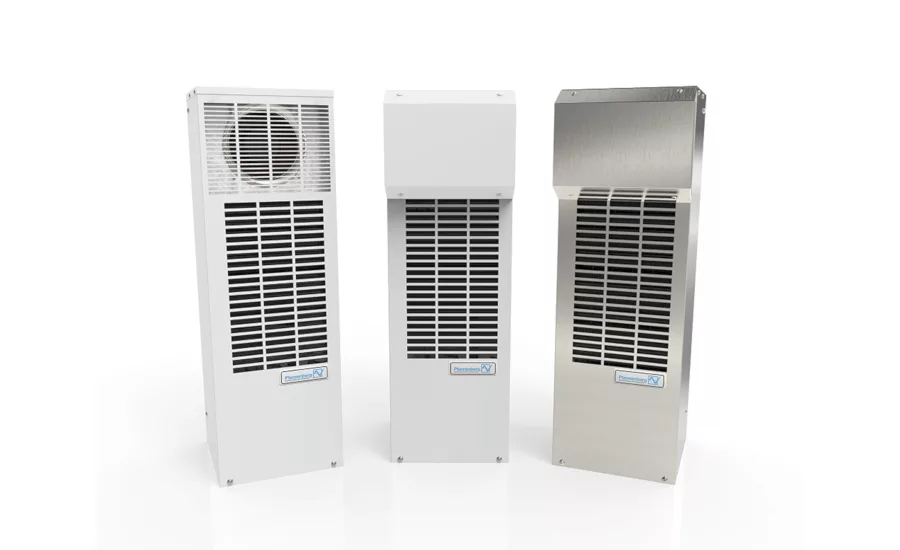

Pfannenberg, Inc., Lancaster, N.Y., announced the DTS 3000 Series Side Mount Cooling Units, ideal for tough industrial or outdoor applications.
This condensate evaporate system is available in sizes ranging from 900-24,000 Btu/h, for use in applications ranging from small enclosures to high-temperature, high-ambient environments.
Features include key internal electronics positioned away from potentially moist and/or caustic air in tough industrial applications, and wide condenser fin spacing that allows for filterless and maintenance-free operation.
DTS 3000 Series Side Mount Cooling Units’ active condensate management uses a positive temperature coefficient (PTC) heater, eliminating the need for a drain line. Cooling mode starts automatically upon exceeding the required cabinet temperature. The condensate evaporator only activates when necessary for maximum energy savings.
The NEMA Type 4 and 4X 304 stainless-steel units repel contaminants in food-grade applications and provide for easy washdown. High-temperature models can operate in ambient temperatures up to 140°F (60° C), ideal for use near industrial ovens or baking lines. An optional cover protects the fan if used in washdown or in high dust/debris areas.
The stainless-steel units consist of an epoxy coating on all exposed copper tubing to compliment the electrostatically-coated condensers. The fans are conformal coated, and the backward curve impellers offer up to 55,000-plus hours of life, what is said to be the longest life and best air flow on the market.
The tool-free patented mounting design allows for quick and efficient assembly.
