Orbital cleaner for process tanks, storage vessels
The new OC200 modular orbital cleaner from GEA Group, Germany, allows for the optimization of the cleaning process.
The orbital cleaner’s normal operating pressures are 4-10 bar and can deliver high-impact liquids for tanks with a diameter of up to 35 meters. The OC200 is particularly suitable for large process tanks and storage vessels for the food, beverage and fish farming industries, among others.

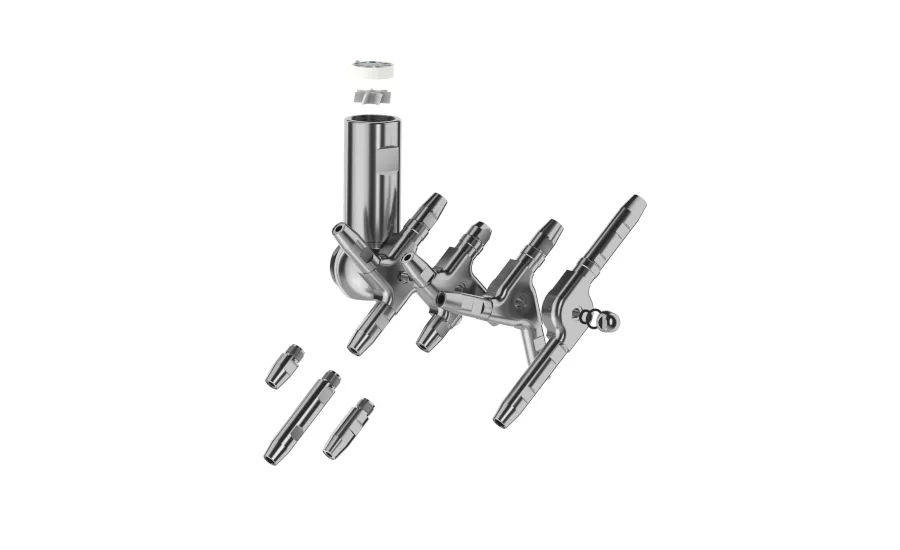

The new GEA Orbital Cleaner OC200 can be individually configured and adapted to the cleaning tasks at hand. The modular system allows interchangeability of key components such as rotors, nozzle carriers and nozzles in various standard options, whilst the main cleaner assembly simply remains in place. This modularity offers flexible adjustments of impact values, cleaning diameter, dwell time and insertion size, as well as reduced consumption of cleaning media.
With nozzle sizes up to 15mm, the Orbital Cleaner combines extended cleaning distances through the use of the latest nozzle and flow guide combinations, ensuring high-impact performance standards. If the process parameters change, the cleaner can be adapted to the new requirements through the interchangeability of key components. Once the cleaner is installed, the process engineer can fine tune the “clean-in-place” process to obtain maximum efficiency.
